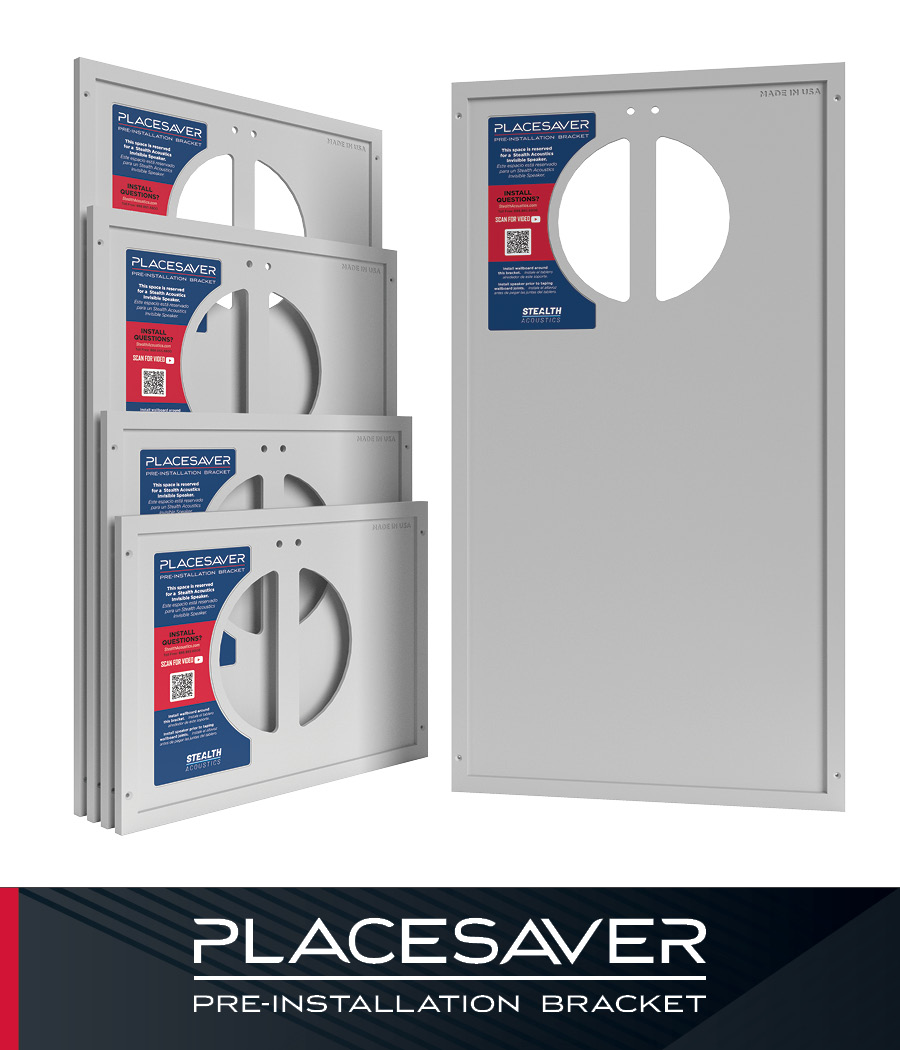

Place Saver Pre-Installation Brackets

PlaceSavers® are temporary place-holders for use on new construction, which allows the invisible speaker to be installed at a later phase in the project, while maintaining its exact spot free of drywall.  This protects the invisible speakers by reducing it’s exposure to the harsh construction environment.

Each Stealth Acoustics speaker panel has a corresponding PlaceSaver® model.  PlaceSavers® are sold in packs of six and are re-usable.  PlaceSavers® should be installed at the pre-wire stage and replaced with the speaker panel just before drywall finishing begins.  They also have labels on the front with space to write in the Stealth Acoustic Dealer name and phone number incase any other trades run into issues.

PlaceSavers® are built from 1/2” MDF and are sized slightly larger than the speaker panel it is reserving space for. This insures that no matter how tight the drywall is hung to the PlaceSaver®, the speaker panel will easily drop into place when the Place Saver is removed. The PlaceSavers® have 1/8” deep x 7/8” wide grooves on the back side that match the mounting flanges on the Stealth Acoustic speaker panels. This insures that if the PlaceSaver® is centered properly on the structural framing the speaker panel will be also.





Downloads

LineaResponse Brochure: Download PDF

Specification Sheet: Download PDF

Specifications

Model For Speakers Width Height Ship Weight
PS-30 L-RAD 430, LRX-85-LF, B30g 16″ (406 mm) 30″ (762 mm) 27 lbs. (12.2 kg)
PS-22 LRX-83, LR8gSLR8gB22g 16″ (406 mm) 22″ (559 mm) 17 lbs. (7.7 kg)
PS-16 L-RAD 116 16″ (406 mm) 16″ (406 mm) 14 lbs. (6.4 kg)
PS-12 LRX-85-HM, LR6g 16″ (406 mm) 12” (305 mm) 11 lbs. (5 kg)

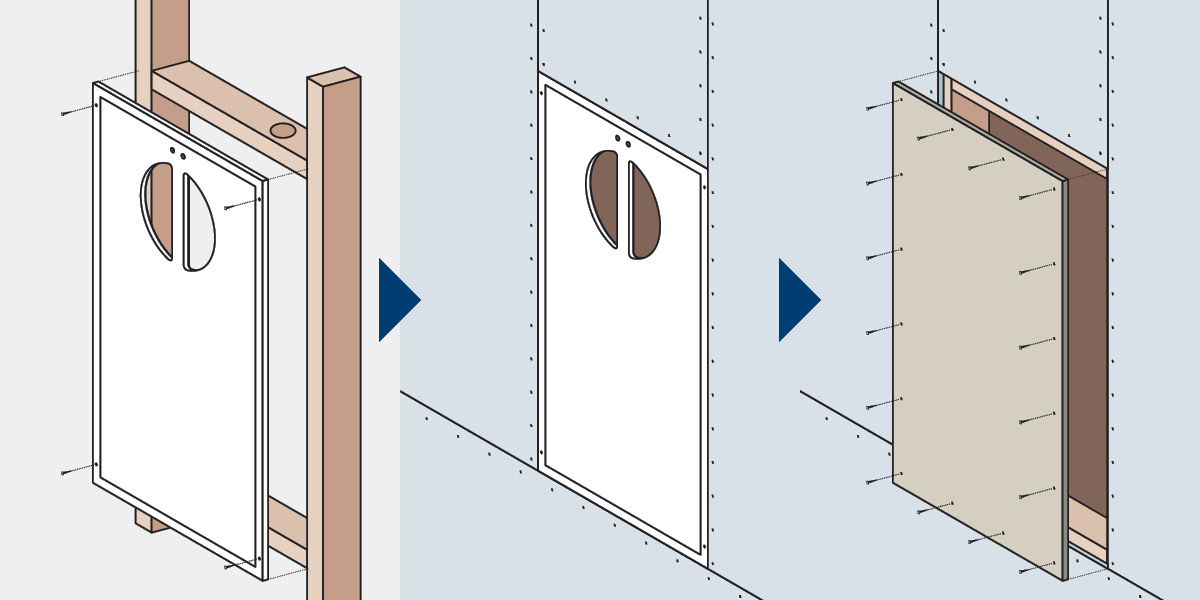

Installation Diagram

PS-Diagram
