Dual 8″ Invisible Subwoofer System

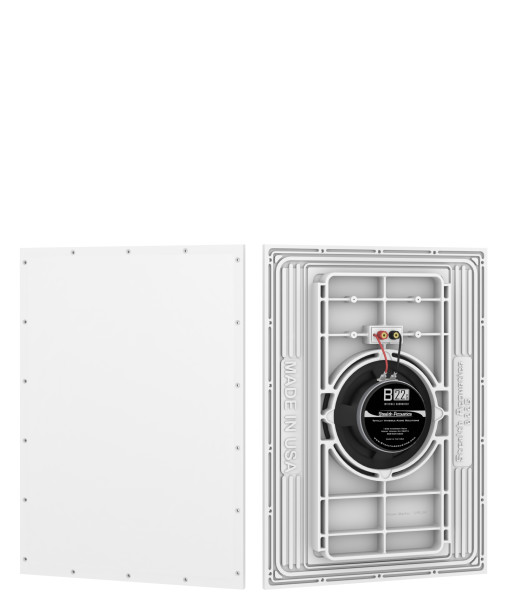

The Stealth Acoustics model B22G is a compact, two-panel monaural subwoofer speaker system that becomes completely invisible after installation. The subwoofer has a heavy duty rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. Each panel incorporates an acoustically coupled, high-quality, high-power 8” (203 mm) cone woofer.
Stealth Acoustics recommends the companion Model SA255 250-watt subwoofer amplifier/crossover as a matched amplifier for the B22G subwoofer speakers. Stealth Acoustics also offers a line of full-range speaker panels that when combined with the B22G, deliver a complete, totally invisible audio solution.
The B22G may be installed in either the wall or ceiling. It can be finished on site with latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.
Recommended Uses
Background Distributed Audio, designed for use with the LR6g for extra impact in critical listening zones.
Best for in-wall or in-ceiling installations.
Downloads
Specification Sheet: Download PDF
User Manual & Installation Guide: Download PDF,
Quick Start Installation Guide: Download PDF
View Instructions & Video
Dimensional Drawings: Download PDF
Test Results: Download PDF
LineaResponse Brochure: Download PDF
Specifications
Frequency Response:
30Hz to 150Hz
Power Capacity:
80 watts RMS
50 watts minimum
recommended power
Sensitivity:
86 dB (1 watt / 1 meter)
System Impedance:
8Ω nominal
Driver Components:
Low-frequency:
Two 1-1/2” (38 mm) voice coil, 8” (203 mm) woofers
Ceramic 20 oz. (567 gr) magnet
Polar Dispersion:
170 degrees vertical and horizontal
Dimensions:
Width: 15-7/8” (403 mm)
Height: 22″ (559 mm)
Mounting Depth:
2-1/2” (58 mm)
Product Weight:
10.5 lbs. (4.8 kg) each
Shipping Weight:
30 lbs. (3.6 kg) per pair
Included Accessories:
Mounting shims
Shim tape
Mounting screws
Terminal wrench
Optional Accessories:
PS-22 PlaceSaver
BX-22 MDF Acoustical Back Box
MBX-22 UL Listed Metal Back Box
MBA-22 UL Listed Adjustable Metal Back Box
MBC-22 Wood and Metal Back Box – For masonry applications
SK-1 Shim Kit
SA2400 2-Channel Amplifier
SA255 Monural Subwoofer Amplifier
WARRANTY – Standard 20-Year Limited
