Quad 8″ Invisible Subwoofer System

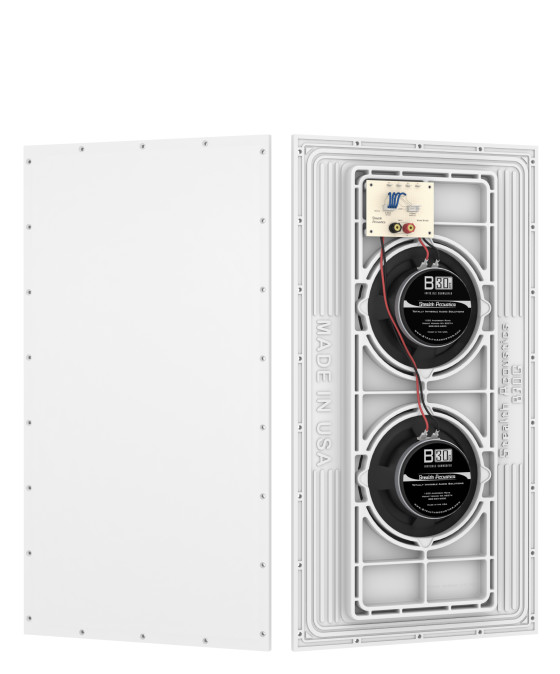

The Stealth Acoustics Model B30G is a two-panel monaural subwoofer speaker system that becomes completely invisible after installation. Ideal for any surround sound, foreground music or whole-house audio system that needs extra bass output, each B30G panel incorporates two acoustically coupled, high-quality, high-power 8” (203 mm) cone woofers. B30G panels may be mounted separately or stacked to achieve desired acoustical results.
Stealth Acoustics recommends the companion Model SA255 250-watt subwoofer amplifier/crossover as a matched amplifier for the B30G subwoofer speakers. Stealth Acoustics also offers a line of full-range speaker panels that when combined with the B30G, deliver a complete, totally invisible audio solution.
The B30G has a rigid frame that attaches directly to standard structural framing. The paintable active diaphragm face is bonded to the frame of the speaker panel, creating an active area surrounded by a stable mounting area. It may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods may be supported using special techniques.
Recommended Uses
Premium Distributed Audio
Distributed Audio
High Performance & Cinema
Best for in-wall installations
Downloads
Specification Sheet: Download PDF
User Manual & Installation Guide: Download PDF,
Quick Start Installation Guide: Download PDF
View Instructions & Video
Dimensional Drawings: Download PDF
Test Results: Download PDF
LineaResponse Brochure: Download PDF
Specifications
Frequency Response:
20Hz to 160Hz
Power Capacity:
100 watts RMS
60 watts minimum
recommended power
Sensitivity:
86 dB (1 watt / 1 meter)
System Impedance:
8Ω nominal
Driver Components:
Low-frequency:
Four 1-1/2” (38 mm) voice coil, 8” (203 mm) woofers
Ceramic 20 oz. (567 gr) magnet
Polar Dispersion:
170 degrees vertical and horizontal
Dimensions:
Width: 15-7/8” (403 mm)
Height: 30″ (762 mm)
Mounting Depth:
2-1/2” (64 mm)
Product Weight:
20 lbs. (4.8 kg) each panel
Shipping Weight:
46 lbs. (21 kg) per pair
Included Accessories:
Mounting shims
Shim tape
Mounting screws
Terminal wrench
Optional Accessories:
PS-30 PlaceSaver
BX-30 MDF Acoustical Back Box
MBX-30 UL Listed Metal Back Box
MBA-30 UL Listed Adjustable Metal Back Box
MBC-30 Wood and Metal Back Box – For masonry applications
SK-1 Shim Kit
SA2400 2-Channel Amplifier
SA255 Monural Subwoofer Amplifier
WARRANTY – Standard 20-Year Limited
